Rashing Ring Distillation Column Packing Ceramic

Name: Rashing Ring Distillation Column Packing Ceramic
Brand: NKCHEM
Price: 220.00 USD

Best Rashing Ring Distillation Column Packing Ceramic wholesale

Brand Name : NKCHEM

Model Number : Ceramic Rashing Ring

Certification : ISO9001:2008

Place of Origin : china

MOQ : 10 Cubic Meter

Price : USD+220.00+1Cubic Meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 cubic meters per Month

Delivery Time : 5-8work days

Packaging Details : Conventional packing

Contact Now

Distillation Column Packing Ceramic Rashing Ring

Product Description

Ceramic Rashing Ring With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Ceramic Raschig Ring can resist high temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.

It's used in commercial fractional distillation towers to reduce pressure loss (versus using trays), while maintaining good efficiency and economy. Typically the change in pressure (also called "delta p") is lower than in the case of trays but slightly higher than for structured packing.

For raschig ring with big size over 100mm, it's usually filled in the column orderly. If its size is less than 90mm, raschig ring is stacked in the column randomly.

Technical date:

Name	Normal mm	DiameterHeight Thickness mm	Surface area m2/m3	Void space %	Bulk density kg/m3	No.elements per/m3	Packing factor m-1
Rasching ring	ø16	16163	250	66	820	178000	870
	ø25	25253	147	78	510	42000	310
	ø38	38384	100	80	458	12000	195
	ø50	50505	80	81	465	5600	156
	ø76	76769	62	75	575	1700	147

Chemical composition

SiO2	Al2O3	Fe2O3	CaO	K2O+Na2O
>70%	23-30%	<1%	<1-2%	<2-4%

Physical properties

Index	Value
Specific gravity(g/cm3)	2.25-2.35
Water absorption(%)	<0.5
Acid-resisting strength, %Wt. Loss (ASTMc279)	<4
Firing temperature(Degree C)	1280-1320
Softening point( Degree C)	>1400
Density(kg/m3)	2350

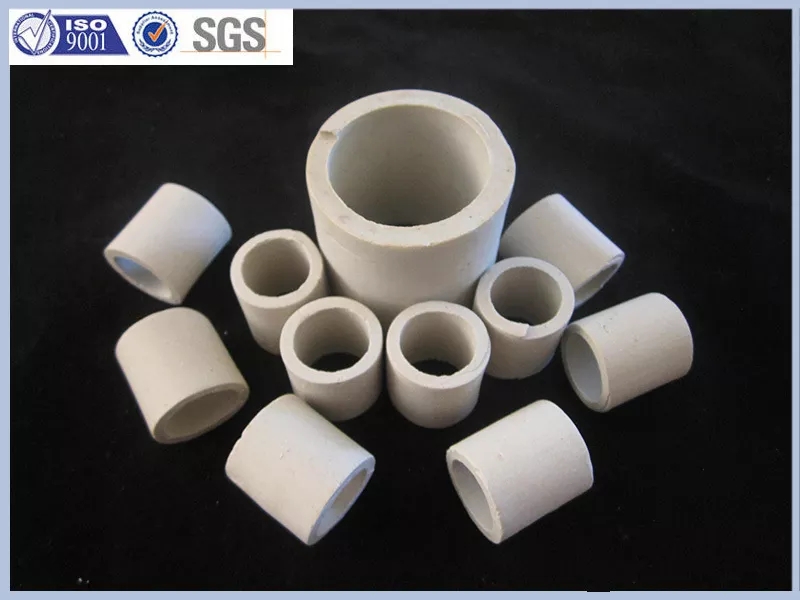

Product Picture

Rashing Ring Distillation Column Packing Ceramic Images
